When you need to mount a sign, a trim panel, or a display bezel, screwing, riveting, and drilling can often be replaced with a double-sided foam tape. However, you may find that the same tape bonds well to aluminium but lifts off a polypropylene trim panel. The issue in such cases is usually not that you have chosen a double-sided adhesive tape that is insufficiently strong, it is far more likely that the tape’s foam and adhesive are simply not suited to the surface in question. So how do you choose from 3M’s foam tape range? Below, we work through what to look for when selecting an industrial double-sided adhesive tape, broken down by surface type and application.

Summary

When selecting a double-sided foam tape, the surface to be bonded is the primary consideration, because the adhesive can only bond effectively where it is able to spread properly. The following 3M VHB types offer a good starting point: 4950P for high-surface-energy substrates; 5952F for mixed, painted, and powder-coated surfaces; 5962F for joints requiring a thicker foam; and LSE-110WF for difficult-to-bond plastics. A durable bond requires a clean surface, even pressure, the right temperature, and sufficient time.

• 3M VHB 4950P: 1.1 mm, white; general-purpose adhesive on a firm, closed-cell foam, suitable for many high-surface-energy substrates.
• 3M VHB 5952F: 1.1 mm, black; for high-, medium-, and lower-surface-energy plastics and paints, metals, glass, and most powder coatings.
• 3M VHB 5962F: 1.6 mm, black; thicker, highly conformable foam for surfaces that do not sit perfectly flush, including most powder coatings.
• 3M VHB LSE-110WF: 1.1 mm, white; for difficult-to-bond PP, TPO, TPE, and composite surfaces, without primer.
• 3M 4516: 1.6 mm, black; vinyl foam tape, but single-sided, if you need to bond two components together, choose a double-sided type.
• Bond time (VHB): adhesion is immediate; bond strength becomes significant after approximately 24 hours and typically reaches its maximum after 72 hours.

What Is 3M Double-Sided Foam Tape?

3M double-sided foam tape is an adhesive tape with a flexible foam layer at its core and adhesive on both faces. It is also commonly referred to as foam-core or sponge-backed adhesive tape. In some types, the foam serves purely as a carrier, holding the adhesive layers in place, while in others, such as the 3M VHB 5952 family, the foam core itself acts as an adhesive.

What the foam contributes to the bond varies by type. Of the types presented below, 3M specifically describes the foam core of the 5952F and 5962F as highly conformable, meaning they follow minor surface irregularities well. For the 4950P, 3M highlights that the bond distributes load evenly along its entire length.

VHB is 3M’s acrylic foam tape family; the name stands for Very High Bond. For a detailed overview of the family, see our earlier VHB article.

What types of foam can the tape be made from?

Within Flanker’s foam tape range, product names indicate four types of foam: acrylic foam, polyurethane foam (PU foam), polyethylene foam (PE foam), and vinyl foam. The material and structure of the foam differ from one type to the next, and this determines which tasks and surfaces each tape is suited to. Our foam tape category contains nearly 190 products, of which more than 100 are VHB types and variants.

The terms closed-cell and open-cell foam appear frequently in product descriptions: in closed-cell foam, the tiny bubbles are separate, sealed cells; in open-cell foam, the cells are interconnected.

The four foam tape types are as follows:

• Acrylic foam: this category includes the VHB types presented below, as well as the 4229P and 5363 tapes. The 0.76 mm thick 3M™ Acrylic Foam Tape 4229P carries a different adhesive on each face; it is designed for automotive surfaces and has high shear strength, meaning the bond resists forces that would cause the components to slide against one another.
• Polyurethane foam (PU foam): the 3M 4026 is an open-cell, urethane foam tape with a peelable paper liner. It is 1.6 mm thick, white, and provides high shear strength for interior bonding applications. The 3M 4032 is a 0.8 mm, white variant with a polyurethane carrier.
• Polyethylene foam (PE foam): the 3M 4492B is a double-sided tape with a closed-cell polyethylene carrier.
• Vinyl foam: the 3M 4516 is made from a closed-cell, high-density, flexible foam that bonds quickly to metal, glass, and plastic. It is 1.6 mm thick and black. This tape is single-sided: adhesive is present on one face only, so if two components need to be fastened to one another, choose a double-sided type.

Why does the surface matter?

An adhesive can only bond effectively if it is able to spread across the surface, and this depends on the surface energy of the material. The same double-sided foam tape can therefore produce very different results on metal, powder-coated sheet, and a polypropylene trim panel. Selecting the right type always begins with knowing precisely what surface you are bonding to.

Surface energy, in simplified terms, indicates how well the adhesive “wets” the surface, how readily it spreads and makes contact with it. On a high-surface-energy material such as metal or glass, the adhesive spreads out. On a low-surface-energy plastic, however, it beads up, much as a water droplet does on a freshly waxed car body, making contact over a smaller area.

3M product descriptions distinguish between high-, medium-, and lower-surface-energy plastics and paints. Difficult-to-bond surfaces include PP (polypropylene), TPO (thermoplastic polyolefin), TPE (thermoplastic elastomer, a rubber-like flexible plastic), and composite materials.

Powder coating (a paint finish applied as a powder and then cured under heat) is a separate consideration: the product descriptions for both the 5952F and the 5962F specifically note that they bond to “most powder coatings”.

For difficult-to-bond plastics, surface preparation often involves a primer, an adhesion promoter. There are, however, tape types such as the LSE-110WF presented below that perform well on these surfaces even without a primer.

Which 3M VHB Foam Tape is right for which task?

Let us look at which 3M VHB tape is recommended for which surface. The surface is the primary deciding factor. The starting points are: 4950P for high-surface-energy substrates; 5952F for mixed, painted, and powder-coated surfaces; 5962F where a thicker foam is needed; and LSE-110WF for difficult-to-bond plastics. All four are VHB acrylic foam tapes, and according to the manufacturer’s product descriptions, each can replace mechanical fasteners such as screws or rivets.

3M VHB 4950P – General Purpose, for High-Surface-Energy Substrates

The 3M VHB 4950P is a white, 1.1 mm thick 3M double-sided adhesive tape, available in 1,180 mm × 33 m rolls. Both faces carry a general-purpose adhesive on a firm yet highly formable, closed-cell foam.

Its key characteristic is that it bonds to many high-surface-energy substrates and can replace screws, rivets, and pins, permanently fastening one material to another. The tape is pressure-sensitive: the bond is formed by the pressure applied during application.

3M VHB 5952F – For a Wide Range of Surfaces, Including Most Powder Coatings

The 3M VHB 5952F is black, 1.1 mm thick, and available in 1,220 mm × 33 m rolls. Both faces of the 5952 family carry a modified acrylic adhesive on a highly conformable foam core, 3M describes this product family as one of its most versatile VHB solutions, combining strength, conformability, and adhesion.

It is specifically designed for strong bonding to high-, medium-, and lower-surface-energy plastics and paints, metals, glass, and most powder coatings. Application examples in the product literature include bonding and sealing a polycarbonate lens over an LCD display, and attaching signs, nameplates, and windows to post-painted control panels.

The tape is viscoelastic: it behaves simultaneously as a resilient material (like rubber) and as a very slowly flowing, high-viscosity material. This dual nature offers design flexibility.

3M VHB 5962F – Thicker foam where the fit is not perfect

The 3M VHB 5962F is black, 1.6 mm thick, and available in 19 mm × 33 m rolls. It features a closed-cell, highly formable, highly conformable acrylic foam carrier and a modified acrylic adhesive. It bonds to a wide range of surfaces, including most powder coatings.

It offers a fast, straightforward, and permanent bonding method that can replace rivets, welding, and screws with high bond strength and long-term durability. Of the two black types, this is the thicker one (1.6 mm versus 1.1 mm), giving more capacity to bridge gaps where surfaces do not sit perfectly flush.

3M VHB LSE-110WF – For Difficult-to-Bond Plastics, Without Primer

The 3M VHB LSE-110WF is white, 1.1 mm thick, and available in the linked size of 19 mm × 3 m. The LSE in the name stands for low surface energy.

It delivers outstanding bonding performance on difficult-to-bond surfaces, such as PP, TPO, TPE, and composite materials, without the need for a primer. It is worth considering whenever such a surface needs to be bonded without primer pre-treatment.

Comparison of the Four Foam Tape Types

Do Thickness, Colour, and Size Matter?

Yes, in practice, all three do. Thickness becomes relevant when the joint is not perfectly flush; colour matters where the bond line remains visible; and the choice of roll size depends on whether the tape will be used as-is or cut to width first. The four VHB types presented offer a choice across all three criteria.

Thickness. A thicker tape, such as the 1.6 mm 5962F, is generally worth considering for more uneven or less precisely fitting surfaces. The other three types are all 1.1 mm thick.

Colour. The 5952F and 5962F are black; the 4950P and LSE-110WF are white. Where the bond line remains visible, colour also affects appearance.

Roll size. Here, the intended use is the deciding factor. The 19 mm wide rolls are ready to use directly; the 1,180 mm and 1,220 mm wide rolls are intended for slitting and conversion. During conversion, strips of the required width, or custom-cut shapes, are produced from the wide roll for the specific application.

The 19 mm × 3 m LSE-110WF is a short roll, making it well suited to a test application before committing to larger quantities.

At Flanker, all of the above products are available slit to any requested width to meet individual requirements.

How should foam tape be applied correctly?

Foam tape delivers a durable bond only when it is applied correctly: a clean surface, even pressure, the right temperature, and sufficient time are all required. The five steps below provide a solid starting point for foam tape application, but always check the specific product description before you begin.

1. Prepare the surface. The bond requires a dry surface that is free of dust, grease, and oil, so clean the surfaces to be bonded thoroughly. Isopropyl alcohol is the most commonly used cleaning agent for this purpose.

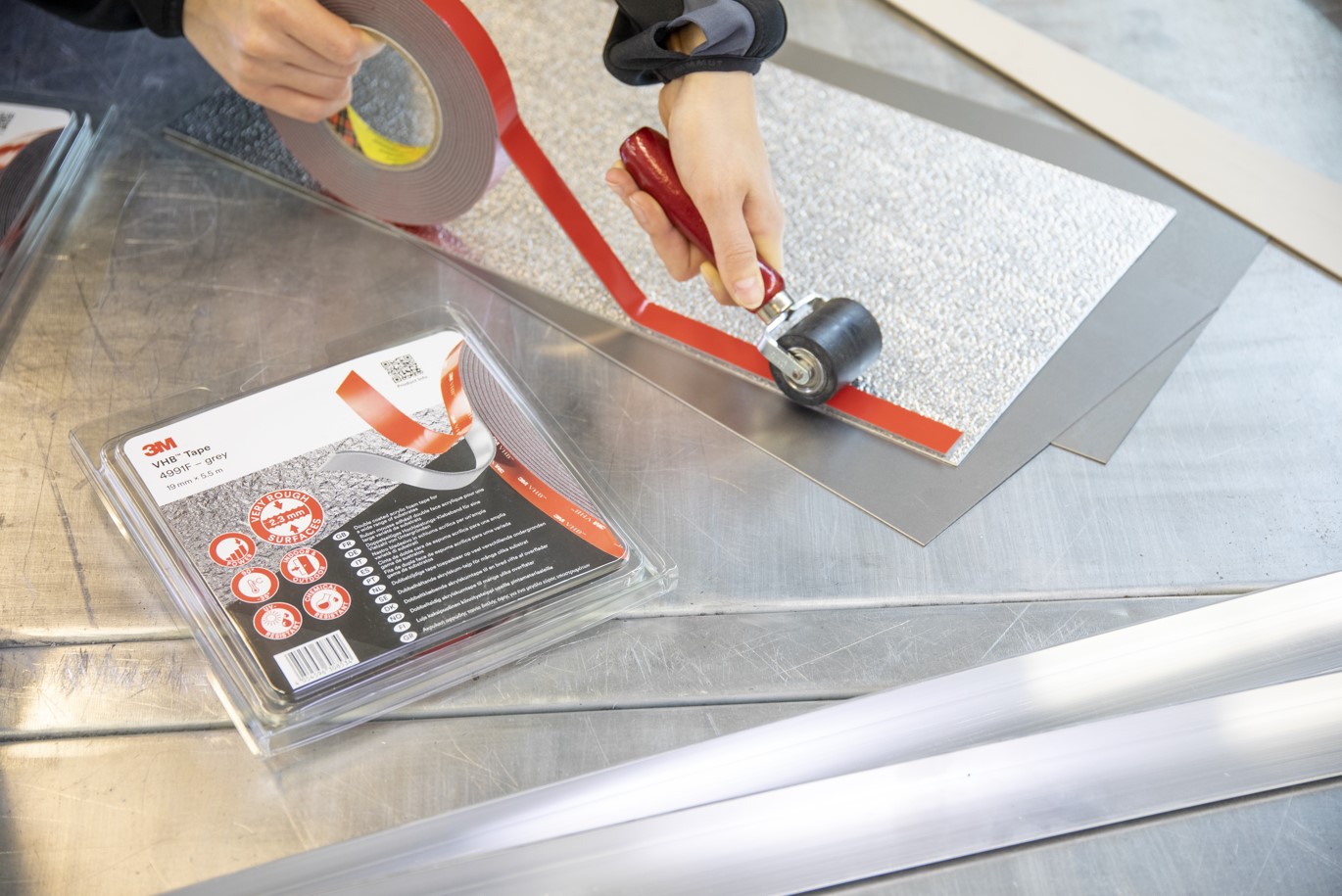

2. Apply even pressure. Press the tape firmly and evenly along its full length and width, so that it makes contact with the surface everywhere.
3. Pay attention to temperature. Ideally, work at around room temperature; warm cold workpieces before bonding.
4. Allow time for the bond to develop. The tape grips immediately, but bond strength builds up gradually: under normal conditions, it becomes significant after approximately 24 hours and typically reaches its maximum after 72 hours.
5. For difficult-to-bond plastics, consider a primer. The exception is where the selected tape type, such as the LSE-110WF, bonds to such surfaces without primer.

For a new material or surface, it is worth carrying out a test application first, as results can vary depending on the tape type and the surface.

3M Foam Tapes in the Flanker Range

Flanker has been the official 3M distributor in Hungary since 1998 and, with more than two decades of experience, its own stock, and manufacturing partner capacity, delivers comprehensive bonding technology solutions across eight industries.

Behind our online catalogue stands a knowledgeable team: our colleagues support you with technical and applications advice, material samples, and testing to help determine which foam tape is right for your surface and application.

If you are looking for a 3M double-sided foam tape, browse our foam tape category. If you are unsure which type suits your surface, contact our specialists — they will be glad to help you choose.

Frequently Asked Questions

What is double-sided foam tape?

An adhesive tape built on a foam core that bonds on both faces. In some types, the foam acts purely as a carrier for the adhesive layers; in the 3M VHB 5952 family, however, the foam core itself acts as an adhesive.

Which 3M VHB tape is suitable for PP, TPO, or TPE surfaces, and is a primer required?

For these difficult-to-bond, low-surface-energy plastics, the 3M VHB LSE-110WF is the starting point. According to the manufacturer, it delivers outstanding bonding performance on these surfaces, as well as on composite materials, without primer. For other tape types, such surfaces are often pre-treated with a primer, an adhesion promoter.

Which foam tape bonds to powder coatings?

Of the types presented, the product descriptions for both the 3M VHB 5952F and the 5962F specifically note that they bond to most powder coatings. For any specific coating, it is worth verifying the result with a test application.

What is the difference between 3M VHB 5952F and 5962F?

Both are black acrylic foam tapes with a modified acrylic adhesive and a highly conformable foam core. The 5952F is 1.1 mm thick and the 5962F is 1.6 mm, making the latter the better choice where surfaces do not sit perfectly flush. In the roll sizes linked in this article, the 5952F comes as a 1,220 mm × 33 m wide roll, while the 5962F is a 19 mm × 33 m roll.

How long does 3M VHB foam tape take to reach full bond strength?

Initial adhesion develops immediately; bond strength becomes significant after approximately 24 hours under normal conditions. Full bond strength is typically reached after 72 hours.

At first glance, windshield replacement might seem like a routine job: remove, clean, fit the new glass, and it's done. In practice, however, a bodyshop or glazing technician is not simply replacing a window, in modern vehicles, bonded glass often plays a structural role as well. That is precisely why the material used between the glass and the metal matters. For this task, the 3M range offers two distinct product families that cannot substitute for each other. Here we look at exactly which solution applies in which situation.

Summary

3M solutions for windshield bonding fall into two groups: single-component polyurethane windshield adhesive creates the actual bond between the glass and the bodywork, whilst windshield tapes, though high-tack, do not create a structural bond; they are therefore designed to assist the installation of direct glaze windscreens. The two solutions are not interchangeable.

• Two separate product families: the cartridge polyurethane adhesive bonds and seals; the windshield tape does not create a structural bond.
• 3M polyurethane windshield adhesives available from Flanker: 58015 (item number: 7000077219, HMLC version) and 08613 (item number: 7000077199, Fast Cure version), both in 310 ml cartridges.
• Single-component: cures without mixing, through contact with moisture in the air; designed for fast cure and short drive-away time.
• 3M windshield tapes: 8610 (6 mm × 4.5 m), 8611 (8 mm × 4.5 m), and 8612 (10 mm × 4.5 m), high-tack tapes for installing direct glaze (gasketless) windscreens.
• Cure time: dependent on temperature and humidity; the specific value is given in the product's technical data sheet.
• Prerequisites for a lasting bond: clean, dry, grease-free surfaces and appropriate adhesion promoter.

What is windshield adhesive?

Windshield adhesive is a single-component polyurethane bonding material that secures the windshield directly to the metal body of the vehicle. This is not simply glazing or a temporary fixing: the material creates the durable, flexible bond between the glass and the vehicle, and at the same time seals the joint, which means the quality of the installation depends largely on it.

It is widely understood in the automotive industry that a bonded windshield is more than just a window: in certain designs, it is also a structural element of the bodywork. Depending on the vehicle type, it may contribute to the rigidity of the body shell and play a role in the correct deployment of the front passenger airbag. It is therefore worth treating windshield bonding as a structural adhesion task rather than simple glazing.

Vehicles are perhaps the structures subjected to the most extreme conditions and demands: the bond around the windshield is exposed simultaneously to vibration, temperature fluctuation, moisture, and UV radiation, throughout the entire service life of the vehicle.

Why is windshield adhesive polyurethane-based?

The answer is straightforward. A polyurethane bond, once cured, remains both strong and flexible. This enables it to withstand vibration, thermal expansion, and weathering, whilst also resisting moisture, a wide range of chemicals, and UV radiation. On a body that is in constant motion and expansion, this combination is not a luxury, it is a basic requirement.

Single-component windshield adhesives cure through contact with moisture in the air, so no mixing or second component is needed. In practice, this means that the speed of curing is also influenced by the air in the workshop, not just the product itself. Further properties of this product family, from gap-filling to chemical resistance, are covered in detail in our article on polyurethane adhesives.

Which 3M windshield adhesives are available from Flanker?

Our range currently includes two 3M polyurethane windshield adhesives: 58015 and 08613, both in 310 ml cartridges. Both products are members of the 3M Auto Glass windshield adhesive family, designed for bonding windscreens and side and rear windows, with fast cure and short drive-away time.

3M™ Auto Glass Urethane Windshield Adhesive, HMLC, 310 ml, Cartridge, 58015 and 3M™ Auto Glass Urethane Windshield Adhesive, Fast Cure, 310 ml, Cartridge, 08613, the latter designation indicating the fast-curing version.

What is windshield tape for, and when is it not enough?

Windshield tape is a high-tack, non-curing (non-vulcanising) tape developed for installing direct glaze (gasketless) windscreens. It is an aid to installation, not a substitute for polyurethane windshield adhesive. Confusing the two is therefore not a matter of preference, it is a matter of safety.

It is worth unpacking the two technical terms separately. Direct glaze means that the glass is fitted directly onto the body flange without a separate rubber gasket, with the adhesive performing both the sealing and the bonding function. Non-curing or non-vulcanising means that the tape's adhesive layer does not undergo chemical transformation, it does not harden into a structural bond: it adheres, but it does not bond.

This gives rise to the most important practical rule: windshields must be bonded using polyurethane windshield adhesive only, never with tape. Tape does not create a load-bearing bond between the glass and the bodywork, and therefore cannot fulfil the structural function we expect of a bonded windshield.

The 3M windshield tapes available in our range differ primarily in width. For example, 3M™ Auto Glass Direct Glaze Adhesive Strip 8610 measures 6 mm × 4.5 m, and 3M™ Auto Glass Direct Glaze Adhesive Strip 8612 is available in 10 mm × 4.5 m. The 6 mm, 8 mm, and 10 mm versions correspond to different installation geometries, so the primary consideration when choosing is the actual flange design and the available space.

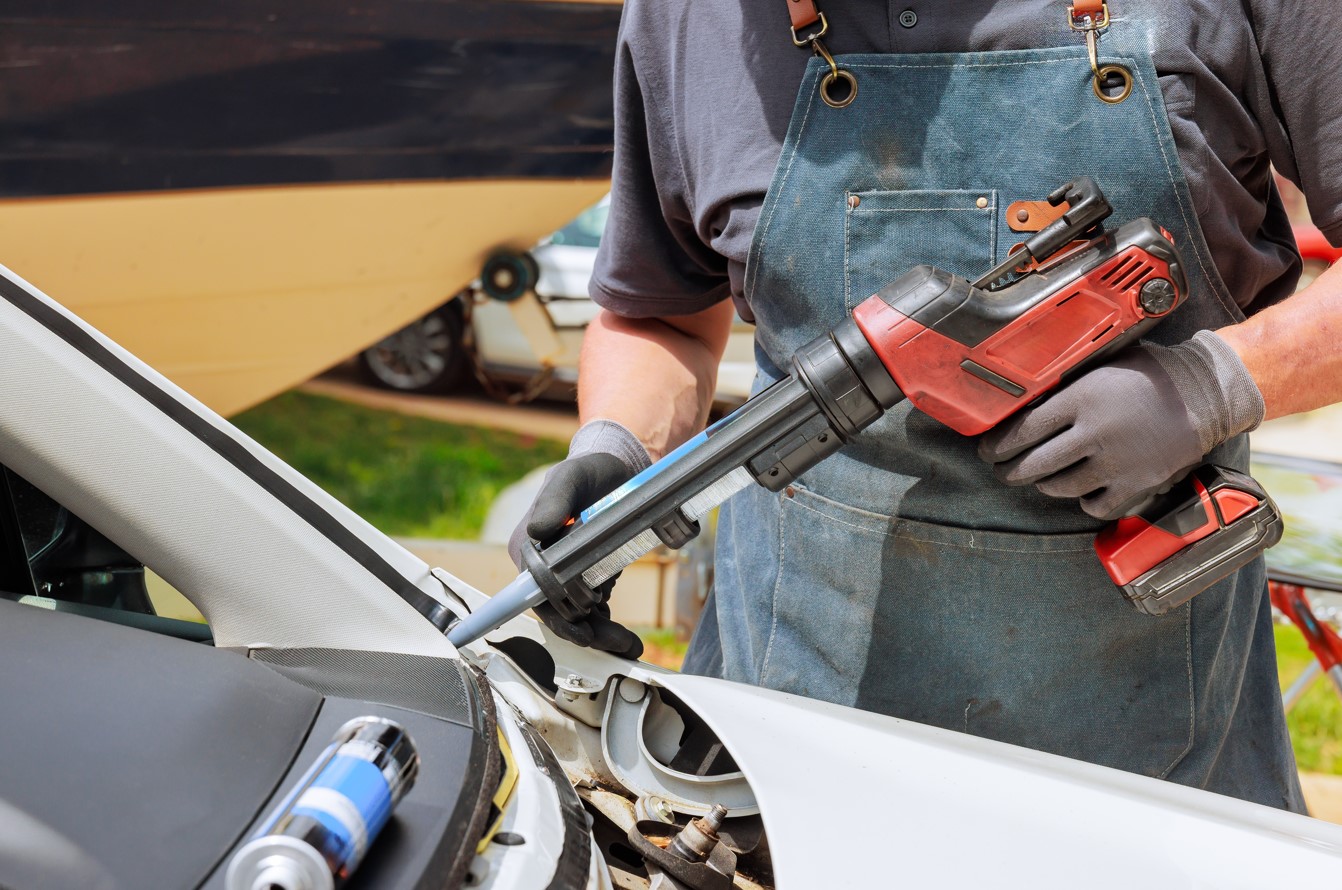

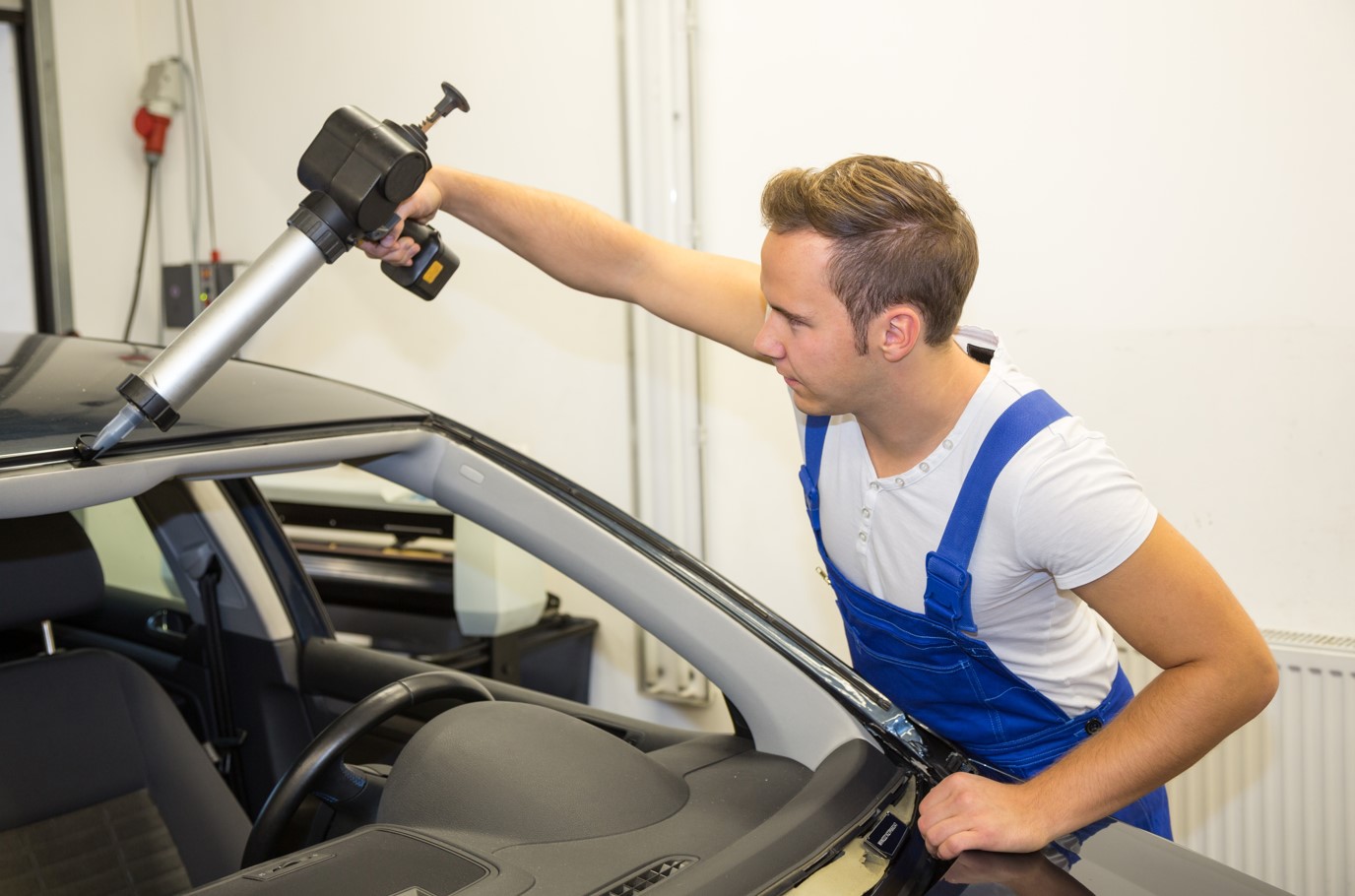

How to use windshield adhesive correctly

Using windshield adhesive starts with cleaning the surfaces. The surfaces to be bonded must be clean, dry, and free of grease, as dust, grease, or moisture can reduce the strength of the bond. This is followed by the adhesion promoter, then an even bead of adhesive applied with a caulking gun, and finally securing the glass for the duration of the cure.

After surface preparation comes the primer, also known as the adhesion promoter. These liquids effectively increase the bond between materials. Some types are available with a sponge applicator, and there are versions containing fluorescent pigment, where coverage can be checked under UV light. Further detail is available in our article on adhesion promoters.

In practice, a cartridge alone is therefore rarely sufficient, alongside the adhesive, surface cleaner, adhesion promoter, and application tools such as a caulking gun are typically also required. A caulking gun is needed for the 310 ml cartridge, and a continuous, even bead is important because a broken adhesive line can leave a gap in the bond.

Finally, do not overlook the need for temporary support: bonded components should be braced during curing to prevent the glass from shifting before the adhesive has hardened. The precise process steps, application method, and required accessories are always specified in the product's technical data sheet, it is worth reviewing this before starting work.

How long does windshield adhesive take to cure?

There is no single figure that applies to every situation. Single-component polyurethane adhesives cure through contact with moisture in the air, so cure time depends on the humidity and temperature of the air, as well as the product itself.

Safe drive-away time therefore cannot be estimated in general terms, and it is not advisable to try: the same product will behave differently in a cold, dry workshop than it will in warm, humid conditions in summer. That said, it can be said as a general principle that 3M windshield adhesives cure quickly and enable a short drive-away time.

What to consider when selecting windshield adhesive

Always start from the specific task, not from the product list. First establish whether a structural bond is genuinely needed, or whether an installation aid tape is what is required. This is followed by the format and workflow, then the question of surface preparation, and finally checking the technical data sheet for the specific vehicle type.

The most common mistake is not choosing the wrong brand, but confusing the product category: tape and cartridge adhesive serve two separate purposes. Once this is clear, the remaining decisions can be planned: how large an area needs to be covered, how frequently the product will be used, and at what temperature the installation will take place.

Flanker has been the official 3M distributor in Hungary for over 20 years and offers comprehensive adhesive bonding solutions to eight industries, including the automotive sector. From design to production, from windshield to bodywork: behind our online catalogue stands a professional partner who understands which product is right for each task, and who can assist with advice, samples, and testing when needed.

The full range of 3M windshield adhesives and windshield tapes is available in our online catalogue. If you are unsure which solution is right for a particular job, contact our specialists. Flanker is ready to help you find the right 3M product for the task.

Frequently Asked Questions

What is windshield adhesive?
Windshield adhesive is a single-component polyurethane bonding material that secures the windshield directly to the bodywork. It cures through contact with moisture in the air, and once hardened delivers a bond that is both strong and flexible, whilst also sealing the joint.

What is the difference between windshield adhesive and windshield tape?
Polyurethane windshield adhesive creates the actual bond between the glass and the bodywork. According to the product descriptions, windshield tape is a high-tack, non-curing strip designed for the installation of direct glaze windscreens. The two cannot substitute for each other.

Which 3M windshield adhesives are available from Flanker?
Two types: 3M™ Auto Glass Urethane Windshield Adhesive, HMLC, 310 ml, Cartridge, 58015 (item number: 7000077219), and 3M™ Auto Glass Urethane Windshield Adhesive, Fast Cure, 310 ml, Cartridge, 08613 (item number: 7000077199). Both are single-component, polyurethane-based, and available in a 310 ml cartridge.

What is the difference between windshield adhesive 58015 and 08613?
Both are single-component polyurethane windshield adhesives in a 310 ml cartridge; the two are distinct versions within the 3M Auto Glass family: 58015 carries the HMLC designation, and 08613 carries the Fast Cure designation. Both are designed for fast cure and short drive-away time; the technical data sheet provides guidance on which to choose.

How long does windshield adhesive take to cure?
This depends on the product, the temperature, and the humidity of the air, so no general figure can be given. The specific cure time is given in the technical data sheet for the relevant product, and safe drive-away time cannot be estimated in general terms.

Is a primer needed for windshield bonding?
An adhesion promoter is standard practice in surface preparation, as it effectively increases the bond between materials. Whether it is mandatory for a given job, and which type is recommended, is determined by the product's technical data sheet and the installation process.

What does a windshield adhesive kit contain?
Alongside the adhesive cartridge, a surface cleaner, adhesion promoter, and the tools needed for application, such as a caulking gun, are typically also required. The exact contents may vary depending on the product and the application, so it is worth tailoring the kit to the specific workflow.

How is old windshield adhesive removed?
Removing the old adhesive layer is part of surface preparation, as a lasting bond can only be achieved on a clean, dry, and grease-free surface. The specific procedure depends on the vehicle and the installation method, and should therefore be carried out by a specialist workshop.

A decent electrician's toolkit almost always contains a roll of black electrical tape, and we tend to think of it as a single product. In industry, however, the same term covers an entire product family, from classic PVC vinyl tape to polyimide film tape for solder masking, with a difference of more than 150 degrees Celsius between the upper temperature limits. So which tape is right for the job? Below, we run through the backing materials, heat resistance levels, and typical applications.

Summary

Selecting the right electrical tape doesn't start with the tape, it starts with the task: first clarify the thermal load, then choose the backing material, and finally weigh up the mechanical demands.

• Entry level: the classic PVC vinyl tape (Scotch® Super 33+™) is rated up to 600 V and continuous use at 105°C, and typically down to –18°C in cold conditions.
• Mid level: 3M™ 11 Acetate Cloth Tape is a good choice for coil wrapping up to 105°C.
• Top level: 3M™ Polyimide Film Tape 5413 can be used across a range of –73°C to 260°C.
• Mechanical demands: glass-reinforced polyester film tapes (such as 3M™ 46) are designed to withstand high shear loads, thanks to their high-shear-strength rubber adhesive.
• Special case: self-amalgamating tape does not use adhesive; its layers fuse together over time into a single solid rubber mass.

What is electrical insulating tape?

Electrical insulating tape is an adhesive tape whose primary function is electrical insulation: separating conductors, connections, coils, and components from each other and from their surroundings. The backing may be PVC vinyl, woven cloth, or a high-temperature plastic film, the choice is determined by the thermal load and mechanical requirements of the task.

The terminology can be misleading here, as the word "insulating tape" can refer both to electrically insulating tape and to sealing tape for waterproofing or air-tightness purposes. Throughout this article, we are referring exclusively to electrical insulation — that is, the products in the electrical tapes category. Sealing tapes form a separate category and are not designed for insulating conductors.

Why does the backing material matter?

The backing, the base layer of the tape, determines what the tape can withstand: how much heat, what chemical exposure, and what mechanical stress. The same adhesive layer behaves quite differently on PVC vinyl, oiled cotton cloth, or polyimide film, which is why the choice of backing is one of the most important technical decisions.

PVC vinyl is the most familiar backing: flexible, conforming to the shape of the conductor, and the material of the classic black electrical tape. 3M™ Temflex™ Vinyl Electrical Tape 1500, for example, is a 0.15 mm thick professional PVC electrical tape suitable for indoor and outdoor use.

Woven backings are used primarily in winding applications. The backing of 3M™ 11 Acetate Cloth Tape absorbs resin and varnish, and the tape is easy to form and can be printed. 3M™ 2510 Electrically Insulating Tape has an oiled cotton cloth backing coated with yellow electrical insulating varnish, keeping it flexible and moisture-resistant.

Film-backed tapes come into their own where insulation must be thin whilst still offering good resistance. Polyester film resists chemicals and moisture: the black 3M™ 1350F-1 is 1 mil thick, and the flame-retardant, acrylic-adhesive 3M™ 1350F-2 ET is 2 mil thick (1 mil = one thousandth of an inch, approximately 0.025 mm). Polyimide film is one of the higher-temperature backing materials; it is often colloquially referred to as Kapton tape.

In glass-reinforced tapes, glass fibres reinforce the polyester film: 3M™ 46 Glass-Reinforced Polyester Film Electrical Tape has a 7 mil thick backing and a high-shear-strength rubber adhesive. Self-amalgamating rubber tape, on the other hand, uses no adhesive: its layers fuse together over time.

What level of heat resistance should you choose?

The heat resistance of electrical tape depends on the backing, so the first step is to establish the continuous thermal load. Classic PVC vinyl tape typically works up to 105°C continuous, acetate cloth tape for coil winding likewise up to 105°C, and 3M™ Polyimide Film Tape 5413 is suitable for use between –73°C and 260°C.

At the entry level sits PVC vinyl. According to the product description, Scotch® Super 33+™ Vinyl Electrical Tape is rated up to 600 V and continuous use at 105°C, and typically remains usable down to –18°C in cold conditions. It also resists abrasion, moisture, acids, and UV radiation. This product group covers the majority of everyday electrical tasks, from insulating connections to colour coding.

At the mid level sit the woven backings. Acetate cloth tapes for coil winding are suitable up to 105°C, and glass cloth tape belongs to the group of abrasion-resistant, tear-edge backings.

At the top level sits polyimide film. 3M™ Polyimide Film Tape 5413 is 2.7 mil thick, uses a silicone adhesive, and is suitable for use between –73°C and 260°C, making it the choice for PCB solder masking, covering the areas of a printed circuit board that need to be protected from solder. Where thermal load is the critical factor of the task, heat resistance comes first, only then does the width or colour of the tape matter.

Which 3M electrical tape is suited to which task?

PVC vinyl tape is right for insulating connections and repairs; woven cloth for winding and bandaging (the close-wrapping of coils); film tape for electronics manufacturing and soldering; and self-amalgamating or rubber-based tape for outdoor or high-voltage cable work. Here is a look at the four typical task groups.

Classic electrical work and colour coding

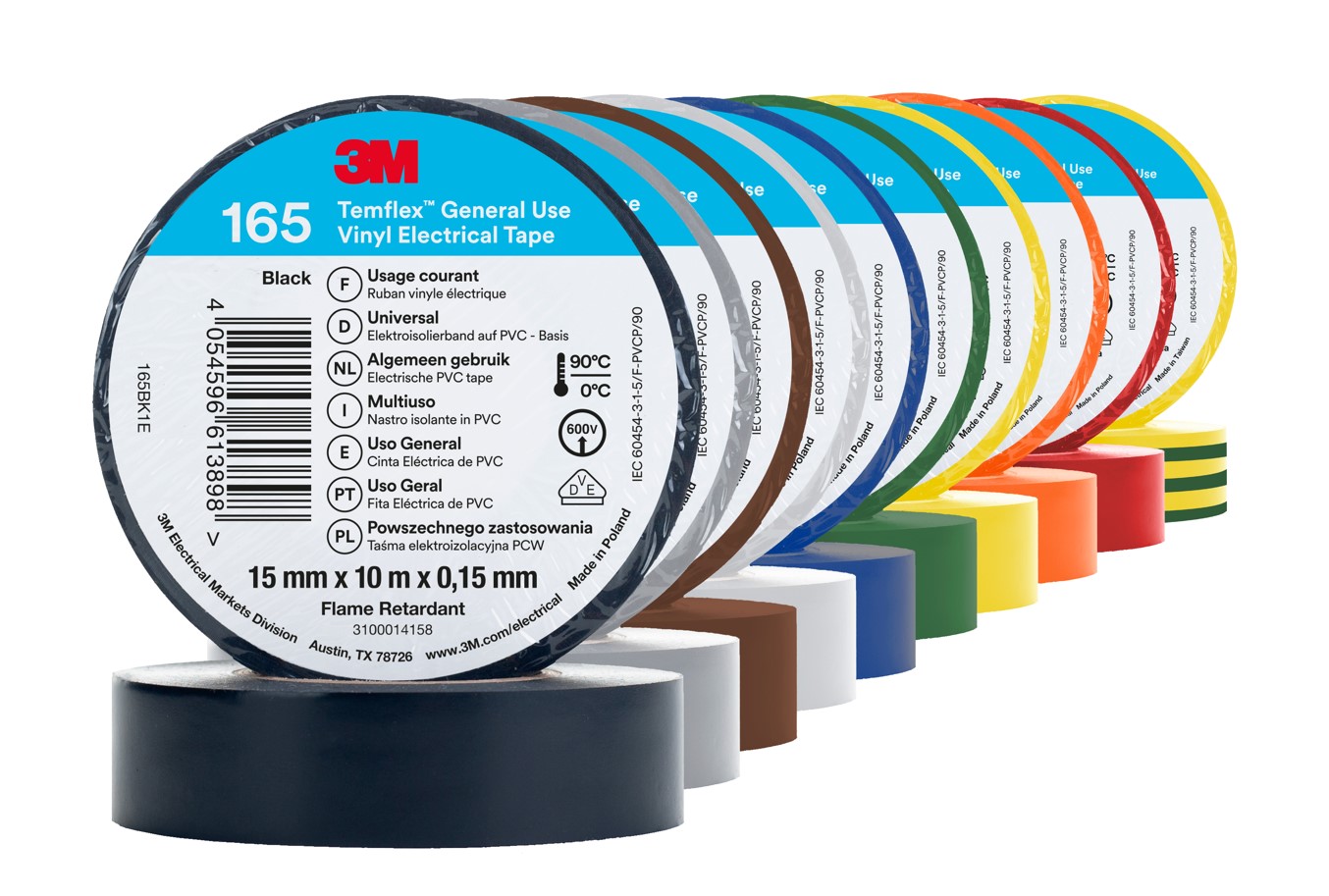

The backbone of everyday electrical tasks is PVC vinyl tape. 3M™ Temflex™ Vinyl Electrical Tape 1300 (whose new name is 3M™ Temflex™ 165) is available in white, black, blue, red, grey, yellow, and green, as well as a green-yellow version. Scotch® #35 Vinyl Electrical Tape is a product family designed specifically for colour coding, making phase marking straightforward. For premium requirements, Scotch® Vinyl Electrical Tape Super 88 and Super 88+ are the right choice: their product descriptions highlight a flexible backing combined with a high-tack adhesive, suitable for use in all weather conditions.

Coil winding, motor and transformer repair

Here, woven backings are the key choice. 3M™ 27 Glass Cloth Electrical Tape is recommended primarily where the tape also needs to withstand abrasion: for securing, binding, and layer and crossover insulation, that is, separating the layers of a coil winding and the crossing conductors.

Electronics manufacturing and soldering

In electronics manufacturing, thin film-backed tapes take centre stage. Polyimide film tape is used for solder masking, and 3M™ 1350F-2 ET Polyester Film Tape is used for overwrapping the outer layers of capacitors and coils, and for colour coding. 3M™ 40 Antistatic Tape is made with an electrically conductive polymer adhesive and is designed for environments sensitive to electrostatic discharge. 3M™ 8810 Thermally Conductive Tape helps improve the efficiency of heat transfer paths.

Outdoor, wet, and high-voltage environments

For outdoor and cable work, the logic differs from the above. According to its product description, 3M™ Temflex™ Low Voltage Self-Amalgamating Tape 2155 remains flexible across a wide operating temperature range. For high-voltage applications, our range includes Scotch® 23 EPR Rubber High-Voltage Electrical Insulating Tape (ethylene-propylene rubber), Scotch® 130C Linerless Rubber Splicing Tape (thermally conductive, rubber-based high-voltage insulating tape), Scotch® 70 Self-Fusing Silicone Rubber Electrical Tape (oil-resistant, silicone-based, self-amalgamating), and Scotch® Cable Jacket Repair Tape 2234. For these types of work, tape selection is always determined by the voltage level of the system and the design specification.

How to use electrical tape correctly

Lasting insulation starts with surface preparation: the surface must be clean, dry, and free of grease. Beyond that, the application method, temperature, and storage conditions all affect how long the bond lasts. Work on live conductors must always be carried out by a qualified electrician in accordance with the applicable regulations.

Adhesion will not last on a contaminated surface. Wrap the tape with a slight stretch, in overlapping turns to ensure no uncovered strip is left, and close the final turn smoothly, without stretching.

In cold conditions, the adhesive typically takes longer to bond, so a roll that has been stored in the cold should be allowed to warm to room temperature before use. Rolls should generally be stored in a cool, dry place, protected from direct sunlight, in their original packaging.

For 3M electrical tape, choose Flanker

Flanker has been selling 3M products for over two decades as the official 3M distributor in Hungary. It offers comprehensive, end-to-end solutions to 8 industries, from printing and paper and packaging through to the automotive and electronics sectors.

Our range of electrical tapes spans from classic black PVC insulating tape through high-voltage rubber tapes to polyimide and thermally conductive electronic tapes, typically available from stock. Behind our online catalogue stands a professional partner who knows which tape is right for the job, and who can provide expert advice when needed.

If you are unsure which heat resistance level or backing material is right for your application, contact our specialists: our team will help you find the most appropriate 3M electrical tape.

Frequently Asked Questions

What does heat-resistant tape mean in electrical work?
Heat-resistant tape is the general term for types that can withstand higher continuous thermal loads. Classic PVC vinyl tape typically operates continuously up to 105°C, whilst 3M™ Polyimide Film Tape 5413 is suitable for use between –73°C and 260°C. The choice is always determined by the continuous thermal load of the task.

What temperature and voltage can classic PVC electrical tape handle?
According to the product description, Scotch® Super 33+™ is rated up to 600 V and continuous use at 105°C, and typically remains usable down to –18°C in cold conditions. The 600 V figure denotes the working insulation voltage, not dielectric strength, that is, not the voltage at which the insulation breaks down. The design specification is always the reference for installation.

Which tape withstands the highest temperature?
Based on published data, the polyimide film tape in our range withstands the highest temperature, and also the widest range: the 3M™ 5413 type is suitable for use between –73°C and 260°C, typically for PCB solder masking (the soldering of printed circuit boards).

Are Kapton tape and polyimide film tape the same thing?
The amber-coloured, high-temperature film tapes are often colloquially called Kapton tape, but Kapton is a trade name belonging to another manufacturer. The corresponding 3M products are available under the name polyimide film tape.

What is self-amalgamating tape used for?
Self-amalgamating tape is intended primarily for outdoor work and cable installation. It does not use adhesive: its layers fuse together over time into a single solid rubber mass. 3M™ Temflex™ Low Voltage Self-Amalgamating Tape 2155 retains its flexibility across a wide operating temperature range.

How should electrical tape be stored?
Electrical tape should generally be stored in a cool, dry place, protected from direct sunlight, in its original packaging. Rolls that have been stored in the cold should be allowed to warm to room temperature before use.

Summary

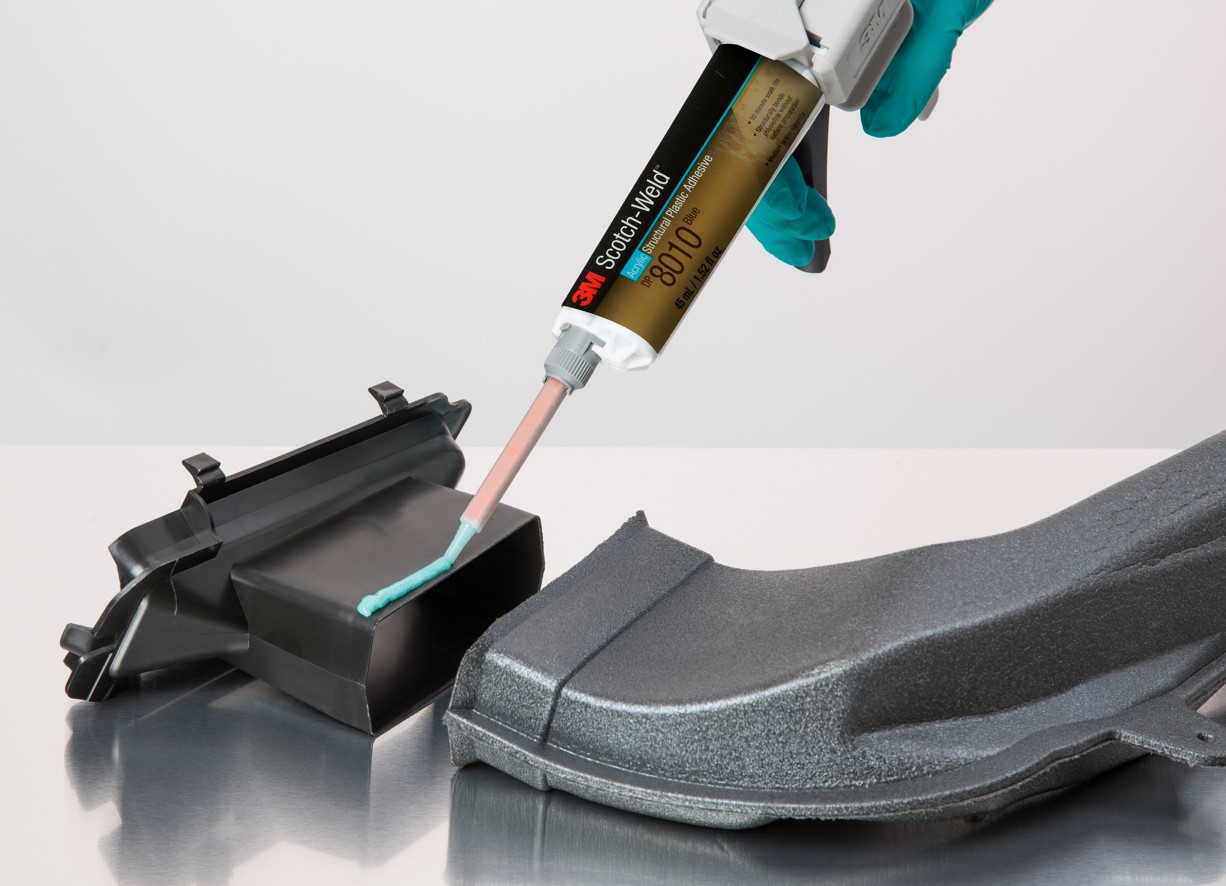

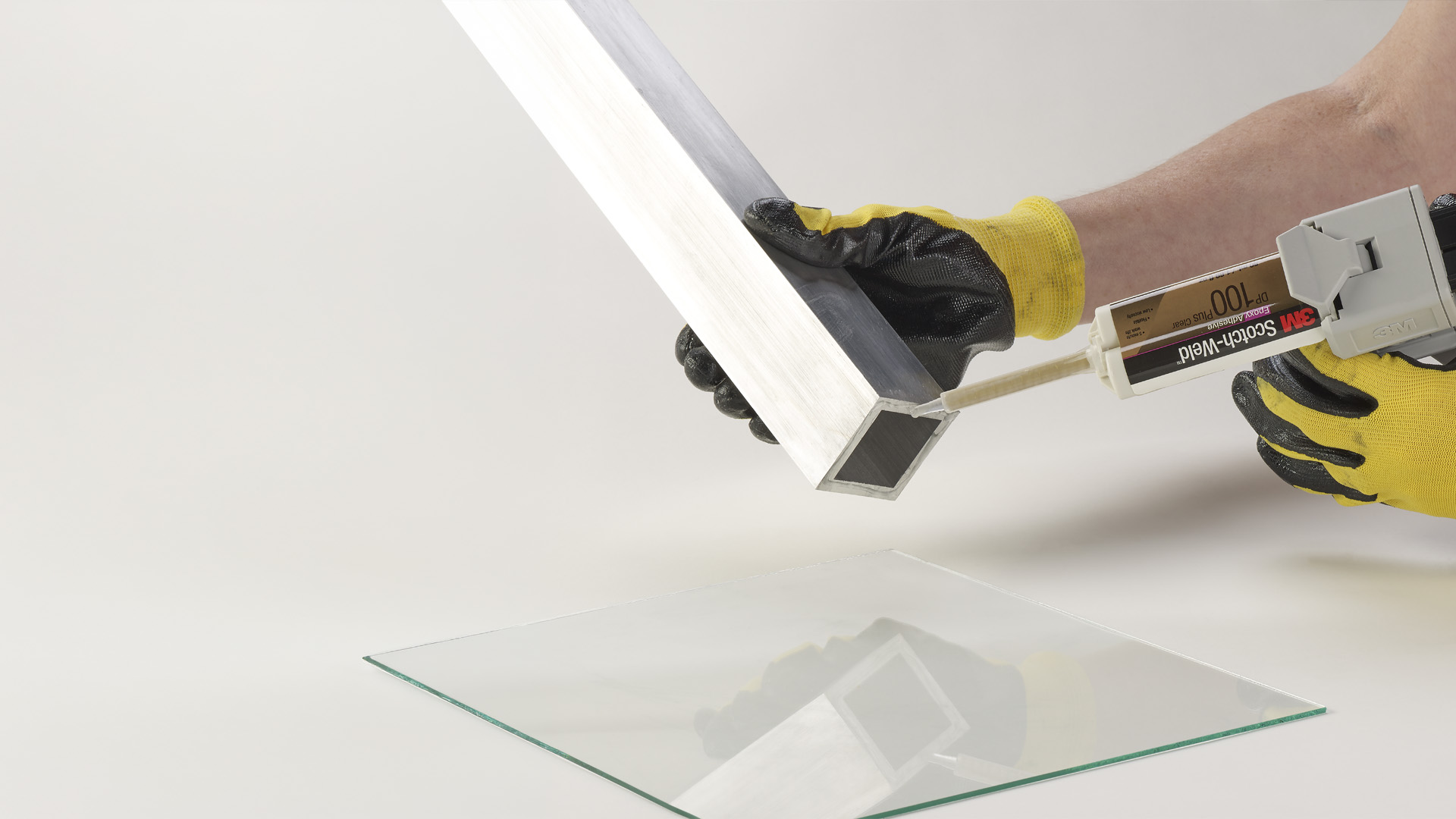

3M Scotch-Weld structural adhesive creates a load-bearing bond that distributes stress across the entire bonded surface, and in many cases can replace screws, rivets, or welds. The 3M Scotch-Weld™ product family covers the full chemistry of structural bonding, from rigid and flexible epoxies to polyurethane and acrylic, so the right chemistry can always be matched to the task. The correct choice always starts with the material pairing, the load, and the movement involved.

• Structural adhesive: a load-bearing bond that distributes stress across the entire bonded surface, not at a single point.
• DP420 (epoxy, black, 400 ml): high-performance, toughened, non-sag bond for replacing mechanical fastenings such as screws and rivets.
• 2216 B/A (flexible epoxy, grey, 250 ml): for bonds subject to vibration, thermal expansion, and contraction; also performs well at low temperatures.
• DP604NS (polyurethane, black, 48.5 ml): flexible, suitable for a wide range of materials including concrete, ceramic, wood, plastic, rubber, and metal.
• DP8010 (acrylic, blue, 45 ml): developed specifically for difficult-to-bond, low surface energy PE and PP plastics, without a primer.
• Precise data: mix ratio, working time, and heat resistance are always specified in the technical data sheet for the relevant product type. Flanker has been the official 3M distributor in Hungary since 1998.

In a manufacturing or maintenance facility, the question is rarely whether to bond, but which proven, branded system to use. Procurement managers and development engineers therefore increasingly look for named, documented solutions for structural joints: a well-chosen 3M Scotch-Weld structural adhesive brings with it the R&D behind the brand and predictable quality. Since the 3M Scotch-Weld product family includes numerous types spanning epoxies, polyurethanes, and acrylics, it is worth knowing precisely which one is suited to which task. In this article, we explain what makes 3M the industry benchmark, and look in detail at four Scotch-Weld solutions that cover most industrial structural bonding requirements.

What is a structural adhesive, and why is 3M the industry benchmark?

A structural adhesive creates a load-bearing bond: it distributes stress not at a single point, but across the entire bonded surface, and in many cases can replace screws, rivets, or welds.

Adhesion, the bond between the adhesive and the workpiece surface, is not the load-bearing element here. A well-designed structural joint transfers load evenly, reduces local stress concentrations, and can unite material combinations that would be difficult or impossible to fix with screws or welding.

3M is one of the defining developers in adhesive and bonding technology, and Scotch-Weld offers not a single product but an entire, well-structured product family, spanning automotive to electronics manufacturing, from which the right solution for any given task can always be selected.

Why choose 3M Scotch-Weld structural adhesive?

3M Scotch-Weld is one of industry's first choices because it offers the full chemistry of structural bonding within a single, coordinated system: rigid and flexible epoxies, polyurethane, and acrylic. This means the task doesn't have to be adapted to the adhesive, the adhesive can be chosen to suit the task.

Rigid epoxy is strongest where maximum strength and minimal movement are the goal. Flexible epoxy and polyurethane cope with vibration, thermal expansion, and joints in motion; acrylic is designed for difficult-to-bond, low surface energy plastics.

Surface energy describes how readily an adhesive wets a material's surface: the lower the surface energy, the harder it is for anything to bond to it.

The other reason is practical. Many Scotch-Weld structural adhesives are supplied in a dual cartridge with a static mixing nozzle, which mixes the two components at the correct ratio, bubble-free, at the moment of application. This eliminates the uncertainty of hand-mixing: there is no under- or over-dosed hardener, no trapped air, and the work remains cleaner. No separate mixing vessel or tool is needed, application is consistently repeatable from one workpiece to the next, and only as much material needs to be mixed as is required at any given time — minimising waste. The exact working time and mix ratio are always given on the product data sheet.

The dual cartridge is the format for manual application: for small-batch assembly, prototyping, repair, and maintenance work. For higher volumes, the same products are also available in bulk packaging for use with dispensing equipment.

Which 3M Scotch-Weld structural adhesive should you choose? (by material and load)

For rigid joints requiring maximum strength and minimal movement, a high-strength epoxy is the natural choice. However, if the joint is subject to vibration, thermal expansion, or contraction, it is worth switching to a flexible epoxy or polyurethane, as these maintain the bond during movement, whereas a rigid adhesive is more likely to crack under such conditions. For mixed-material or moving joints, and for substrates such as concrete, wood, or rubber, polyurethane is the versatile solution; for difficult-to-bond, low surface energy plastics, a targeted acrylic adhesive is required.

The choice can be clarified with a few quick questions:

• What materials need to be joined, and what are their surfaces like?
• What magnitude and type of load will the joint experience?
• Is there movement or vibration in the joint?
• Will the joint experience thermal movement  i.e., expansion or contraction?
• Does the substrate include any low surface energy plastics (PE, PP)?

The same logic applies when translated into specific industries: the automotive industry uses these systems for bonding mixed materials and panels, electronics manufacturing for precise, controlled assembly, and the metals industry for high-strength structural joints. If the primary question is the chemistry itself, the choice between epoxy, polyurethane, and acrylic, further detail is available in our overview article on adhesive types.

The main types of 3M Scotch-Weld structural adhesive (4 highlighted solutions)

Flanker stocks the full Scotch-Weld range, and the four types below cover the vast majority of industrial structural bonding requirements. Here is a detailed look at what each one is suited for: all are two-component, but each is best suited to a different task.

3M Scotch-Weld™ Epoxy Adhesive DP420 – the high-performance epoxy

3M Scotch-Weld™ Epoxy Adhesive DP420 is a two-component, epoxy-based structural adhesive, available in black, in a 400 ml cartridge. It is a high-performance, toughened, non-sag type, meaning it does not run on vertical surfaces, suitable for replacing mechanical fastenings such as screws and rivets. It is recommended wherever the strongest, most rigid bond is required and the finished assembly must hold its form under load. A typical example is replacing a rivet- or screw-fixed metal joint with adhesive bonding: the load is then no longer concentrated around a few holes but distributed across the entire bonded surface. Precise strength and processing values are given in the product's technical data sheet.

3M Scotch-Weld™ Epoxy Adhesive 2216 B/A – the flexible epoxy

3M Scotch-Weld™ Epoxy Adhesive 2216 B/A is a flexible, two-component epoxy adhesive, available in grey, in a 250 ml format, curing at room temperature. It provides a high-strength bond with both high shear and peel strength, resisting forces that would slide or pull the surfaces apart, whilst remaining exceptionally flexible, making it ideal wherever vibration, thermal expansion, and contraction occur regularly. A good example is a panel or enclosure bond subject to vibration and thermal movement: a rigid adhesive may crack over time, whereas the flexible epoxy follows the movement of the material. It also performs well at low temperatures without becoming excessively brittle, making it a viable option for moving joints exposed to thermal cycling.

3M Scotch-Weld™ Urethane Adhesive DP604NS – the versatile polyurethane

3M Scotch-Weld™ Urethane Adhesive DP604NS is a two-component polyurethane adhesive, available in black, in a 48.5 ml dual cartridge. Non-sag and fast-working, it nevertheless delivers a flexible bond and performs reliably on a wide range of substrates: concrete, ceramic, wood, plastic, rubber, and metal can all be bonded with it. It is a strong choice for mixed-material assemblies where, for instance, wood, metal, and plastic all appear in the same structure and a single flexible bond is required for each element, combining flexibility and broad material compatibility in one solution.

3M Scotch-Weld™ Low Odour Acrylic Adhesive DP8010 – the acrylic for difficult-to-bond plastics

3M Scotch-Weld™ Low Odour Acrylic Adhesive DP8010 is a two-component, acrylic-based structural adhesive, available in blue, in a 45 ml dual cartridge. It was developed specifically for bonding low surface energy plastics, primarily polyethylene (PE) and polypropylene (PP), which are difficult or impossible to bond reliably with most conventional adhesives. These plastics often appear wherever a component has a smooth, somewhat waxy feel and adhesives struggle to take hold. Typical examples include polypropylene or polyethylene housings, enclosures, and components, where most other adhesives fail to form a lasting bond. The key advantage of DP8010 is precisely that it bonds many grades of PE, PP, and thermoplastic elastomers (TPE) without a primer or separate surface treatment, making it the solution wherever conventional adhesives fall short.

How to apply 3M Scotch-Weld structural adhesive correctly

A lasting bond has two prerequisites: correct mixing and careful surface preparation. For many Scotch-Weld types, mixing is handled automatically and accurately by the dual cartridge and static mixing nozzle; the mix ratio and working time are given on the data sheet for the specific product.

Surface preparation determines whether the bond will last. The surfaces to be bonded must be clean, dry, and free of grease, because even the best structural adhesive cannot form a lasting bond on a surface contaminated with dust, oil, or moisture. For low surface energy plastics (PE, PP), conventional adhesives typically also require a separate pre-treatment such as priming or surface activation. This is precisely why targeted acrylic types were developed: DP8010 bonds many grades of these plastics without a primer, but cleaning and degreasing remain essential even here.

Work in a well-ventilated area, wear protective gloves and eye protection, and follow the product's safety warnings. The precise timing of application, assembly, and load-bearing capacity, as well as heat resistance, vary by product type and should always be planned on the basis of the technical data sheet for the specific type being used.

Why Flanker? (Official 3M distributor in Hungary)

Flanker has been the official 3M distributor in Hungary for over 20 years, since 1998. This means you don't need to select the right type on your own from a catalogue: our specialists recommend a specific Scotch-Weld solution based on the task, the material pairing, and the load, and the products you need are typically available from stock.

Flanker provides comprehensive, end-to-end solutions to eight industries, including automotive, electronics manufacturing, and the metals sector. Behind our online catalogue stands a knowledgeable professional partner who knows which Scotch-Weld type is right for the job, and who is on hand to provide expert guidance when needed. A full overview of the 3M adhesives range is available in our article 3M Adhesive: A Solution for Every Situation.

The full range of 3M Scotch-Weld structural adhesives is available in the Structural Adhesives category on our website. If you are unsure which type is right for your application, please contact our specialists, who are happy to assist in selecting the right solution and pack size.

Frequently Asked Questions

What is a structural adhesive?
A structural adhesive creates a load-bearing bond that distributes stress across the entire bonded surface, not at a single point. It can therefore replace screwed, riveted, or welded joints in many applications and can also unite dissimilar material pairings.

Why is 3M Scotch-Weld an industry benchmark?
3M Scotch-Weld offers the full chemistry of structural bonding within a single, coordinated system: rigid and flexible epoxies, polyurethane, and acrylic. This means the right chemistry can always be matched to the task, and many types are available in precisely-dispensing dual cartridges.

Which 3M structural adhesive is suitable for replacing screws and rivets?
For replacing rigid, high-strength mechanical fastenings, 3M Scotch-Weld™ Epoxy Adhesive DP420 is the appropriate choice, available in black in a 400 ml cartridge. Precise strength values are given in the product's technical data sheet.

Which 3M adhesive withstands vibration and thermal expansion?
For joints subject to vibration, thermal expansion, and contraction, 3M Scotch-Weld™ Epoxy Adhesive 2216 B/A flexible epoxy is the right choice, it remains highly flexible whilst delivering high shear and peel strength, and also performs well at low temperatures.

Can PE and PP plastics be bonded with a structural adhesive?
Low surface energy plastics such as polyethylene (PE) and polypropylene (PP) are difficult to bond with most adhesives, which typically also require a primer or surface activation. 3M Scotch-Weld™ Low Odour Acrylic Adhesive DP8010 was developed specifically for this task and bonds many grades of these plastics without separate pre-treatment. Cleaning, drying, and degreasing of the surface remain necessary, however.

What surfaces is 3M Scotch-Weld™ Urethane Adhesive DP604NS suited to?
3M Scotch-Weld™ Urethane Adhesive DP604NS is a two-component polyurethane adhesive that is non-sag and fast-working, yet flexible, and is suitable for a wide range of surfaces: concrete, ceramic, wood, plastic, rubber, and metal. It is available in black in a 48.5 ml dual cartridge.

How do I find out the mix ratio and cure time?
The precise mix ratio, working time, cure time, and heat resistance are always given in the technical data sheet for the specific product, as these vary by type. Flanker's specialists are also happy to help interpret the data.

Where can I obtain 3M structural adhesive in Hungary?
The full range of 3M Scotch-Weld structural adhesives is available from Flanker, which has been the official 3M distributor in Hungary for over 20 years. The types you need are typically available from stock; expert advice is provided where required.
